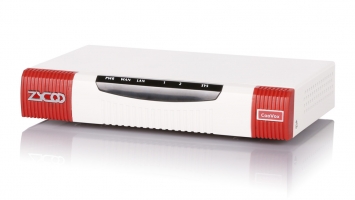

CooVox-U20 V2

Het CooVox-U20 IP-telefoonsysteem is de tweede generatie Mini IP Phone System gelanceerd door ZYCOO. Het is het eerste mobiele IP-telefoonsysteem met de mogelijkheid om de GSM-module te gebruiken om verbinding te maken met het mobiele netwerk voor mobiele telefonie.

De CooVox-U20 is een slimme IP PBX-systeem van de volgende generatie, ontworpen en geoptimaliseerd voor de zakelijke telecommunicatiebehoeften van vandaag. De CooVox-U20 is een betaalbare, schaalbare, interoperabele, veilige en betrouwbare oplossing die niet alleen traditionele PBX-functies zoals Automatische Attendant en Voicemail biedt, maar ook veel geavanceerde functies zoals Remote Extensions, Conference Bridge, Call Recording, Call Detail Records (CDR) , Automatische gesprekverdeling (ACD), Web-dial, Unified Messaging (Voicemail to Email) en nog veel meer functies.

Module FXO FXS BRI 1GSM
CooVox-U20-A202 2 0 / Optional
CooVox-U20-A211 1 1 / Optional
CooVox-U20-2BRI / / 2 /







Features

Call Features
‚Äč
Call Back
Call Forward
Call Hold
Call Paging and Intercom
Call Park
Call Pickup
Call Queue
Call Recording
Call Routing
Blind Transfer
Attendant Transfer
Call Waiting
One Number Stations
Caller ID
Dial by Name
Music On Hold/Transfer
3-Way Conference
Video Call

PBX FeaturesBlack List
BLF (Busy Lamp Field)
CDR (Call Detailed Record)
Conference Room (20 Rooms)
Call Monitoring
DID (Direct Inward Dialing Number)
DISA (Direct Inward System Access)
Distinctive Ringtone
DND (Do Not Disturb)
DNIS (Dialed Number Identification Service)
Feature Codes
FOP (Flash Operation Panel) Status Monitoring
Follow Me
IVR (Interactive Voice Responses)
Mobility Extension
Multi-Language Prompts
Multi-Language GUI
One Touch Recording
Phone Book(LDAP Server)
Phone Provisioning
Pin Set
Record File Download
Ringgroup
SIP Register with UDP/TCP/TLS
SIP Trunk
Skype for SIP
Smart DID
Speed Dial
Spy
SRTP (Secure Realtime Transport Protocol)
T.38 Fax (Pass-through)
Time Based Rule
WebRTC
Voicemail & Voicemail to Email

System Capacities
Up to 15 Concurrent Calls
Up to 20 Conferences
Up to 30 IP Phone Registers/Extensions
Recording: 36,000 mins (.gsm); 4,000 mins (.wav)
Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)

Codecs & Protocols
Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/
G.726/G.729/GSM/SPEEX
Video Codecs: H.261/H.263/H.263+/H.264
Protocols: SIP (RFC3261)/IAX2
DTMF: RFC2833/SIP INFO/In-Band

Network Features
DDNS Client
DHCP Server
IPv4/IPv6/IEEE802.1Q
IP Assignment (PPPoE/DHCP/Static)
SNMP v1/v2
TR069
Static Route Table
Trouble Shooting (Ping/Traceroute)
VPN Client (N2N/L2TP/PPTP/OpenVPN/IPSec)
VPN Server (PPTP/L2TP/OpenVPN/IPSec)

Security Features
Refuse SIP Register DoS
Refuse Abort Invite DoS
Refuse SSH Login DoS

Logs
PBX Log
Web Access Log
PBX Debug Log

Specification

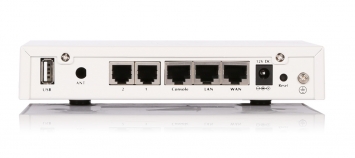

Hardware Interfaces
1 Reset Button
1 Power Interface
2 Ethernet Interface
2 Analog Ports (FXO/FXS)
1 USB 2.0 Interface for Storage
1 Console Port

Hardware Specifications
Processor: DualCore A7(1GHz)
SDRAM: DDR3 512MB
Storage: 8GB SD Card(Industry Standard)
Power Supply: Input AC 100~240V, 50/60Hz;
Output DC 12V/1A

Environment
Working Temperature: 0 ~ 40°C
Storage Temperature: -20 ~ 55°C
Humidity: 5 ~ 95% Non-condensing

Applicable Modules




FXO-200  FXS-200 FXOS 1GSM

Packing

Inner Box Dimension 290 mm × 153 mm × 65 mm
G.W./Unit 0.84 kg
Carton Dimension 355 mm × 320 mm × 314 mm
Units/Carton 10 Units
G.W./Carton 9.04 kg
